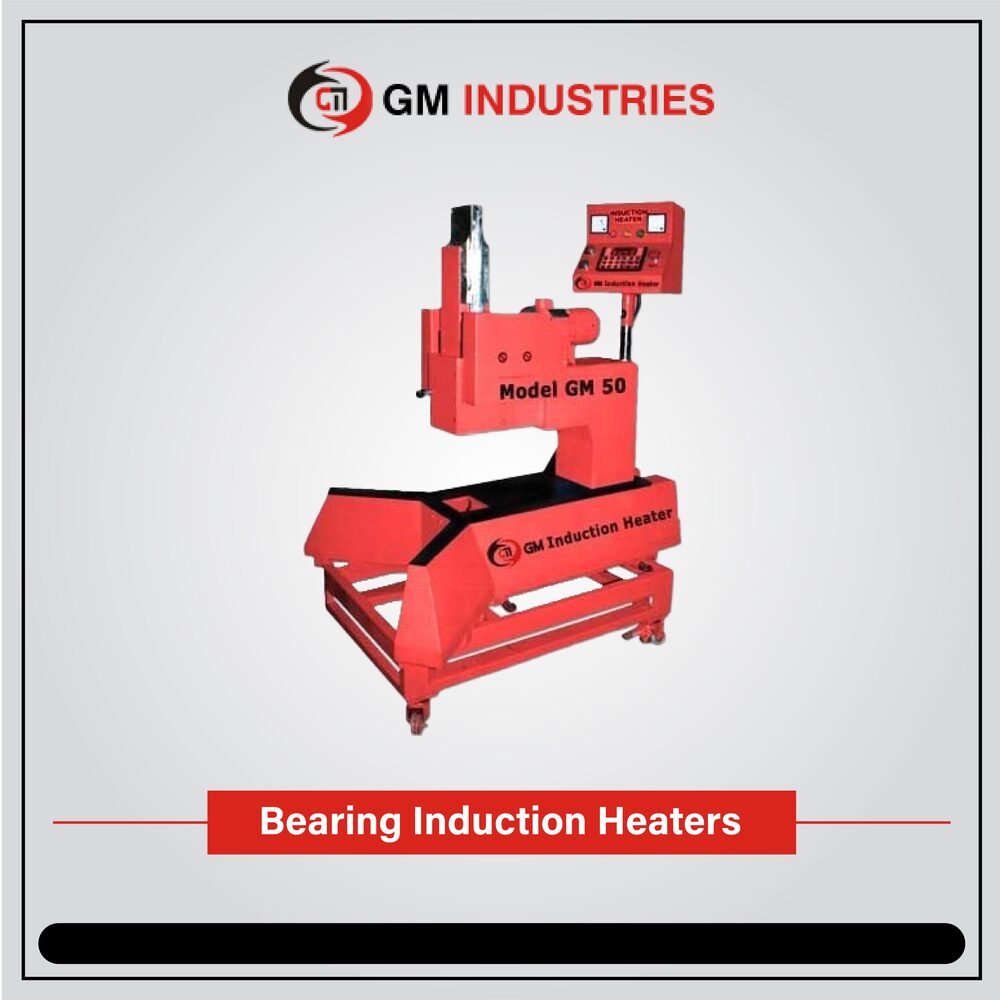

Automatic Bearing Heater
Product Details:
X
Product Description
Automatic Bearing Heater GM50 ( Automated - Motorized Roll-Sliding Model)Owing to our rich industry experience, we are offering Automatic Induction Bearing Heater. This heater is fabricated by our professionals at par with international standards utilizing supreme class components to ensure high performance at the users end. The Automated Induction Bearing Heater is known for optimum performance, compact design, less maintenance, corrosion resistance and longer service life. To meet the varied needs of clients, this is offered in different specifications at highly competitive prices.
TECHNICAL DATA SHEET
| Product Data | GM 50 |
| Power | 50 / 80 KVA |
| Voltage | 3 X 415V + 10% |
| Current (Max) | 120 / 190A |
| Power Control | 25% 50% 75% & 100% |
| Temperature Control (Range) | 0-400oC |
| Maximum Temperature | 400oC |
| Accuracy Temperature | + 3oC |
| Time-Control | 0-99 Minutes |
| Residual Magnestium | <1A / cm |
| Overall dimensions (wxdxh) (mm) | 1250 X 700 X 1150 |
| Space between supports (wxh) (mm) | 450 X 550 |
| Weight (Main Unit) | 470 Kg. |
| Weight with Standard Yokes | 550 Kg |
| Horizontal York Sizes (mm) | 150 X 150 X 800 for bore dia. 212 MM & above |
| Colour of the Equipment | RED / BLUE & APPLE GREEN |
Optional Accessories
| Horizontal Yoke Sizes (mm) | as per Custom need |
| Digital Thermometer (0-500 C) | Yes |
| Roll-Sliding Model | Yes |
| Swing Arm Model | Yes |
| Riser Block (Pair) (mm) | ----- |
| Magnetic Temperature Probe | Yes |
| Equipment Trolley | Yes |
| Hydraulic Equipment Trolley | Yes |
| Hydraulic Stacker for loading & unloading of Component | Yes |
