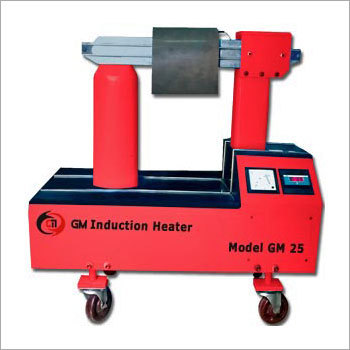

Bearing Heater

Product Data

GM 04

Power

2.0 to 4.0 KVA

Voltage

230V or 110V+10%, 50-60Hz

Current (Max)

10 / 18A

Power Control

25% 50% 75% & 100%

Temperature Control (Range)

0-250^oC

Maximum Temperature

400^oC

Accuracy Temperature

+ 3^oC

Time-Control

0-99 Minutes

Residual Magnestium

<1A / cm

Overall dimensions (wxdxh) (mm)

300 X 270 X 330

Space between supports (wxh) (mm)

140 X 130

Weight (Main Unit)

27 Kg.

Weight with Standard Yokes

32 Kg

Horizontal York Sizes (mm)

20 X 20 X 250 for bore dia. 25 MM & above

30 X 30 X250 for bore dia. 40 MM & above

55 X 55 X 250 for bore dia.
75 MM & above

Colour of the Equipment

RED / BLUE & APPLE GREEN

Horizontal Yoke Sizes (mm)

10 X 10 X 250 for bore dia.
12 MM & above

15 X 15 X 250 for bore dia.
20 MM & above

40 X 40 X 250 for bore dia.
55 MM & above

45 X 45 X 250 for bore dia.
61 MM & above

Digital Thermometer (0-500 C)

Yes

Roll-Sliding Model

Yes

Swing Arm Model

Yes

Riser Block (Pair) (mm)

Yes

Magnetic Temperature Probe

Yes

Equipment Trolley

Yes

Hydraulic Equipment Trolley

Yes
